Layers Sidebar

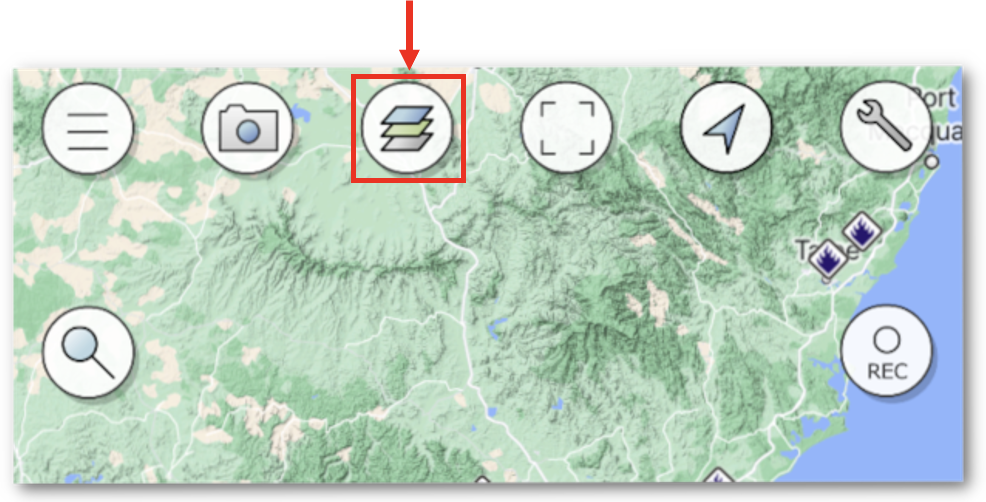

This Sidebar contains all filters available to be toggled on and off in the map view. It is accessed from the Map Viewer toolbar. The layer sidebar can be closed by tapping the map area or the ‘x’ at in the top right corner.

../../_images/layers_box_in_toolbar.png

The Sidebar consists of the following sections:

../../_images/layers_sidebar_e.png

Base Layers

These are the base layer options for the map. These options will change depending on where you are on the map and the zoom level.
See Offline Base Layers for information on viewing them offline.
../../_images/base_layers_section.png

Overlays

Imported Geo PDFs will be automatically converted to an Overlay layer. These overlays are superimposed on top of the base layers at the correct extents. Only one overlay layer can be viewed at once. Clicking on the desired overlay will toggle it on/off, as well as move the Map View to its extents.

../../_images/overlays_section.png

Feature Layers

Feature Layers are the read-only feature and incident feeds that are available with your current organisation configuration. This section on the layers sidebar lists all features visible with the current map extents and zoom. A feature type can be toggled on/off by clicking on its tab.

../../_images/feature_layers_section.png

Map Features

Map Features are the features that have been added to the map by a user. This section displays the total number of each feature type added anywhere on the map. A feature type can be toggled on/off by clicking on its tab.

../../_images/map_features_section.png

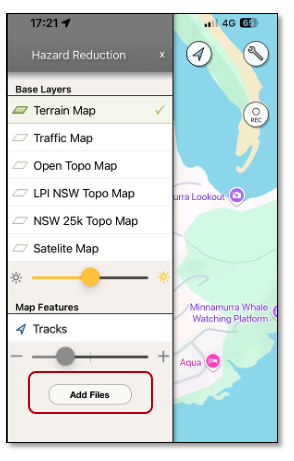

Add Files

FireMapper iOS/Android allows users to import files onto existing maps in-app.

To add files:

  1. Tap the Add Files button on the layer sidebar. This will open your files app.

  2. Select the files you want to import from your device.

  3. Confirm the import and the files will be added to the map.

The following file types are supported:

  • Shared Maps

    • JPG

    • HEIC

  • Private Maps

    • JPG

    • HEIC

    • TPKX (tile cache with EPSG 3857 projection)

    • KMZ

    • KML

    • GeoJSON

    • GeoPDF

../../_images/add_files.png
