Feature Toolbar

The Feature Toolbar only appears at the bottom of the Map Screen whenever a feature is selected on the map. The buttons that are available in the bar are dependent on the selected feature type and if the feature is editable. The toolbar automatically disappears when a feature is unselected. The options on the Feature Toolbar will change depending on the type of feature selected.

../../_images/featurebar_s.jpeg
delete Delete: Deletes the selected feature.

This deletes the feature from all devices that have access to the map.

Note

Deleted features can be restored. See Info Bar for more information.

edit Edit

This functionality exists for LINES or AREAS only.

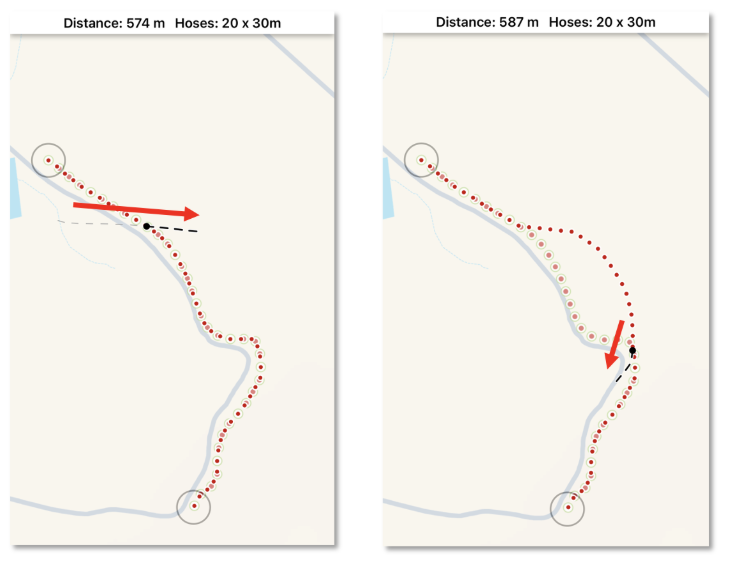

1. Lines: Either end of the line can be moved. Tracing a line intersecting the existing line 2 times will replace that section of the line with your new geometry.

before_edit_line after_edit_line

2. Areas: Tracing a line intersecting the existing area 2 times will replace that section of the area with your new geometry. You can cut or add area.

    • a. Cut: Removes the selected area from the existing area.

      before_cut_area after_cut_area

    • b. Add: Adds the selected area to the existing area.

      before_add_area after_add_area

email Email: Sends the selected feature as an email message.

The email message includes a screenshot of the map and any GPS photos that are attached to the selected feature if available. This option is available for all map features. You can set the default email addresses for email messages in the Main Menu->User Profile.

Note

On iOS devices, this uses the Apple email client. You will need to have your email account configured in it for this to work.

send_email

text Text: Sends the selected feature as a text message.

The text message includes a screenshot of the map and any GPS photos that are attached to the selected feature if available. This option is available for all map features. You can set the default mobile numbers for text messages in the Main Menu->User Profile.

send_text

rotate Rotate: Rotates the selected point by 45 degrees.

This option is only available for directional point types (eg. fire/wind direction).

before_rotate after_rotate

flip Flip: Flips the selected line style.

This option is only available for asymmetrical lines (eg. control lines, backburns).

before_flip after_flip

navigate Navigate With FireMapper: Navigates in a straight line to the selected point in FireMapper.

The button will point in the direction of the selected feature using the internal compass. This is handy if you need to know the approximate direction of the feature on the map without having to start a navigation.

../../_images/nav_screen.png

Note

This functionally is not available yet on the Android.
