IR Camera

The Thermal camera view is available when the drone is equipped with a thermal camera (e.g. DJI M30T, Matrice 4T)

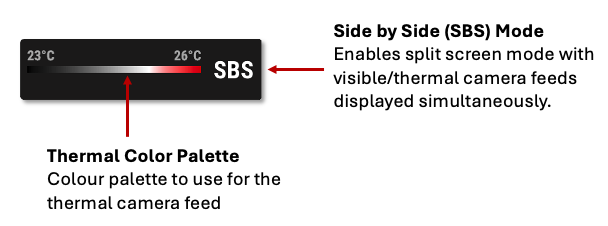

../../_images/thermal_controls.png

Change Thermal Palette

  1. Select the IR Camera view

  2. Tap the Palette in the Thermal Camera toolbar in the top right corner of the screen.

    ../../_images/change_palette.png

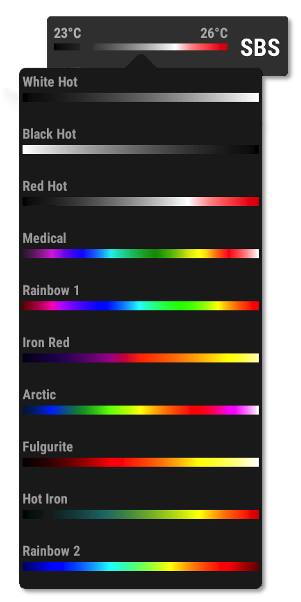

  3. Select the desired Color Palette from the list.

    ../../_images/palette_list.png

Side By Side Mode

  1. Select the IR Camera view

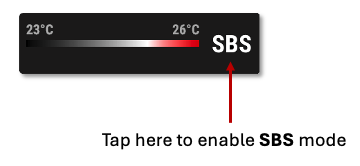

  2. Tap the SBS button in the Thermal Camera toolbar in the top right corner of the screen.

    ../../_images/sbs_button.png

  3. The camera view will switch to Side By Side mode, displaying both the RGB and Thermal camera views side by side.

    ../../_images/side_by_side.png

  4. To exit Side By Side mode, tap the SBS button again.

    ../../_images/disable_sbs.png
