Status Screen

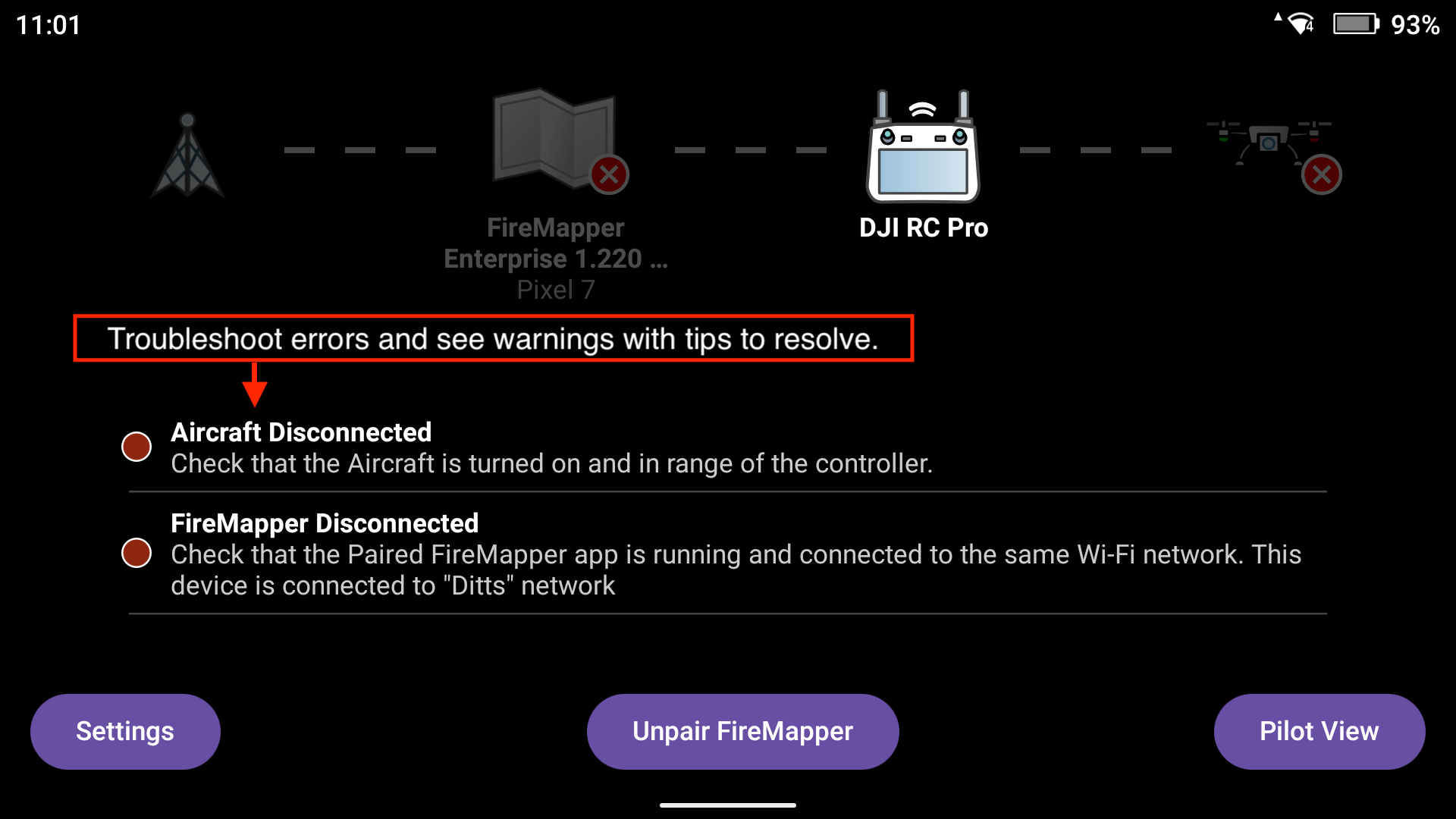

This screen displays the current connection status between the drone, InFlight and FireMapper.

Once paired, the home screen will be displayed. This screen shows an overview of the system’s connection status between the drone, InFlight and FireMapper, and also allows navigation to the pilot view or settings.

../_images/status_screen.png

Here is a list of common status messages that may appear on the status screen and how to resolve them:

Error Message

Description
../_images/error.png
DJI SDK Registration Error
InFlight requires an internet connection after installation to register the DJI SDK. You
will not be able to connect to the DJI drone to the InFlight app until this is
completed.
Make sure the device is connected to the Internet and restart InFlight app (if required).
../_images/controller_disconnected.png
Controller - Disconnected
The DJI remote controller is not connected to the InFlight app. This message can occur if you
are running InFlight on a Android phone or tablet instead of a DJI Controller.
You should only be using InFlight on an Android if you are trying to use it with the
DJI Mini 3, DJI Mini 3 Pro or DJI Mini 4 Pro drones with RC-N1 or RC-N3

Connect the Android device running InFlight to the USB-C connection at the top of the
RC-N1 or RC-N3 controller. Do not use the USB-C connection at the bottom of the remote
controller to connect to the Android device as this is the wrong port. Use the USB cable
that was supplied with the remote controller (make sure the side connected to the controller
has the controller icon on the cable.
Ensure that the DJI remote controller is powered on (check green status lights).
../_images/aircraft_disconnected.png
Aircraft - Disconnected
The DJI remote controller is unable to connect to the aircraft. This can occur if the aircraft
is out of range or not turned on.

If this occurs during flight, adjust the remote controller antenna to avoid any null spots
and move closer to the drone.

If this occurs before flight, make sure the drone is turned on and paired to the correct
aircraft.
../_images/wifi_disconnected.png
Wi-Fi - Disabled
Wi-Fi is disabled on the controller. FireMapper and InFlight need to be on the same local Wi-Fi
network in order to connect.
../_images/wifi_disconnected.png
Wi-Fi - Disconnected
Wi-Fi is disabled on the controller. FireMapper and InFlight need to be on the same local Wi-Fi
network in order to connect.
../_images/firemapper_disconnected.png
FireMapper - Disconnected
InFlight is connected to a Wi-Fi network, however it is unable to connect to FireMapper client
application.

Ensure that both the device running FireMapper and the device running InFlight are running on
the same local Wi-Fi network (eg. same hotspot, wifi modem or Starlink router). Make sure you
are not using a Wi-Fi network with client isolation enabled. Both devices need to be on the
same subnet. Check that the FireMapper application has been granted access to the local network
../_images/controller_weak_signal.png
Wi-Fi Connection - Weak Signal
There is a weak Wi-Fi connection on the device running InFlight. Move closer to the Wi-Fi
network for better connectivity. This issue may affect connectivity with the FireMapper app.
../_images/aircraft_critical_batt.png
Aircraft - Critical Battery
DJI Aircraft is has less than 30% battery. Land as soon as possible to avoid loss of aircraft.
../_images/aircraft_low_batt.png
Aircraft - Low Battery
DJI Aircraft is has between 30% - 50% battery remaining.
../_images/controller_critical_batt.png
Controller - Critical Battery
The DJI Remote Controller has less than 30% battery remaining. Land as soon as possible to
avoid loss of control of aircraft
../_images/controller_low_batt.png
Controller - Low Battery
The DJI Remote Controller has between 30% - 50% battery remaining.
../_images/firemapper_critical_batt.png
FireMapper - Critical Battery
The device running FireMapper that is paired with the controller has less than 30% battery.
../_images/firemapper_low_batt.png
FireMapper - Low Battery
The device running FireMapper that is paired with the controller has between 30% - 50% battery.
remaining.
../_images/no_map_selected.png
FireMapper - No Map Selected
No map is currently selected on the FireMapper device that is paired with InFlight. You need
to open the map in FireMapper that you would like to add points/lines/photos from InFlight.
You will not be able to save points, lines or photos from InFlight until a map is selected.
../_images/aircraft_error.png
Aircraft - SD Card Missing
There is no SD card in the aircraft. An SD card is required to capture photos with the InFlight
and share with FireMapper. Make sure a compatible SD card is correctly installed
before taking off.

A list of recommended SD cards can be found on the DJI website.
https://support.dji.com/help/content?customId=en-us03400007643&spaceId=34&re=US&lang=en.
../_images/aircraft_error.png
Aircraft - SD Card Full
The SD card on the aircraft is full. You will need to free up space on the sd card in order to
capture photos with InFlight and share with FireMapper.
before taking off.
